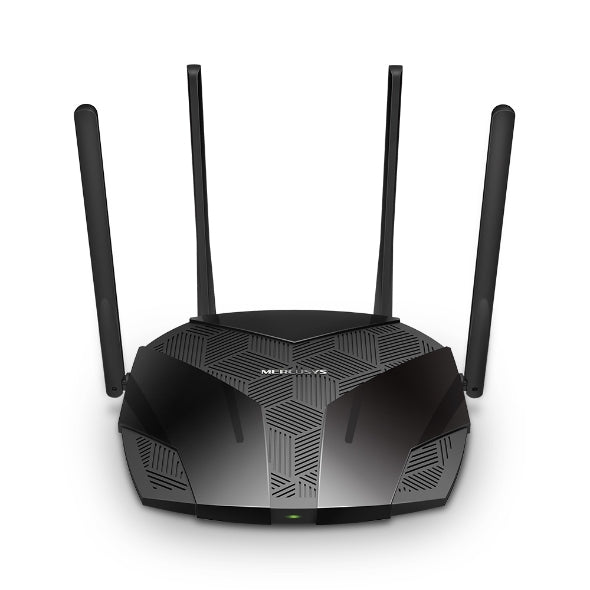

Mercusys MR70X AX1800 Dual-Band WiFi 6 Router

WiFi 6
The Innovation of WiFi

The increasing number of wireless and smart home devices tests the limits of previous WiFi standards. The latest WiFi 6 standard implements advanced technology designed to boost the average data throughput per user in dense user environments, deliver more simultaneous connections, extend WiFi range, and maintain reliable data transmissions, satisfying the demand for a high-performance wireless experience.

Level Up Your Speeds with WiFi 6

Enjoy unrivaled levels of speed with next-gen WiFi 6. By combining 1024-QAM and a long OFDM symbol, MR70X delivers total speeds of up to 1800 Mbps – 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Game online, watch 4K videos, and crank up everything to the highest settings without lag.^†

4× More Capacity
More Streams, More Devices, More Fun

WiFi 6 also improves network capacity to better address the increased demand on home networks. With MU-MIMO and OFDMA, MR70X transmits data to and from multiple devices at the same time, reaching up to 4× more capacity, greatly increasing your devices’ transmission efficiency and the throughput of your whole network under the same conditions.^§

Less WiFi Interference

BSS Color marks the data frames from different APs which helps minimize the signal interference from your neighbors to improve transmission efficiency.^‡

Wireless

Wireless Standards

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

WiFi Speeds

1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Reception Sensitivity

11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps:-94dBm
11a 54Mbps:-76dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS8:-68dBm
11ac VHT80 MCS8:-65dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security

WEP
WPA / WPA2-Personal
WPA2 / WPA3-Personal

Wireless Functions

Enable/Disable Wireless Radio, WMM

Software

Operation Modes

Router Mode



Access Point Mode

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control
Local Management
Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

VPN Server

OpenVPN, PPTP supported

Hardware

Dimensions

8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm)

Interfaces

1× Gigabit WAN Port + 3× Gigabit LAN Ports

Button

Reset/WPS Button

Antenna Type

4× 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents

• AX1800 Wi-Fi 6 Router MR70X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
