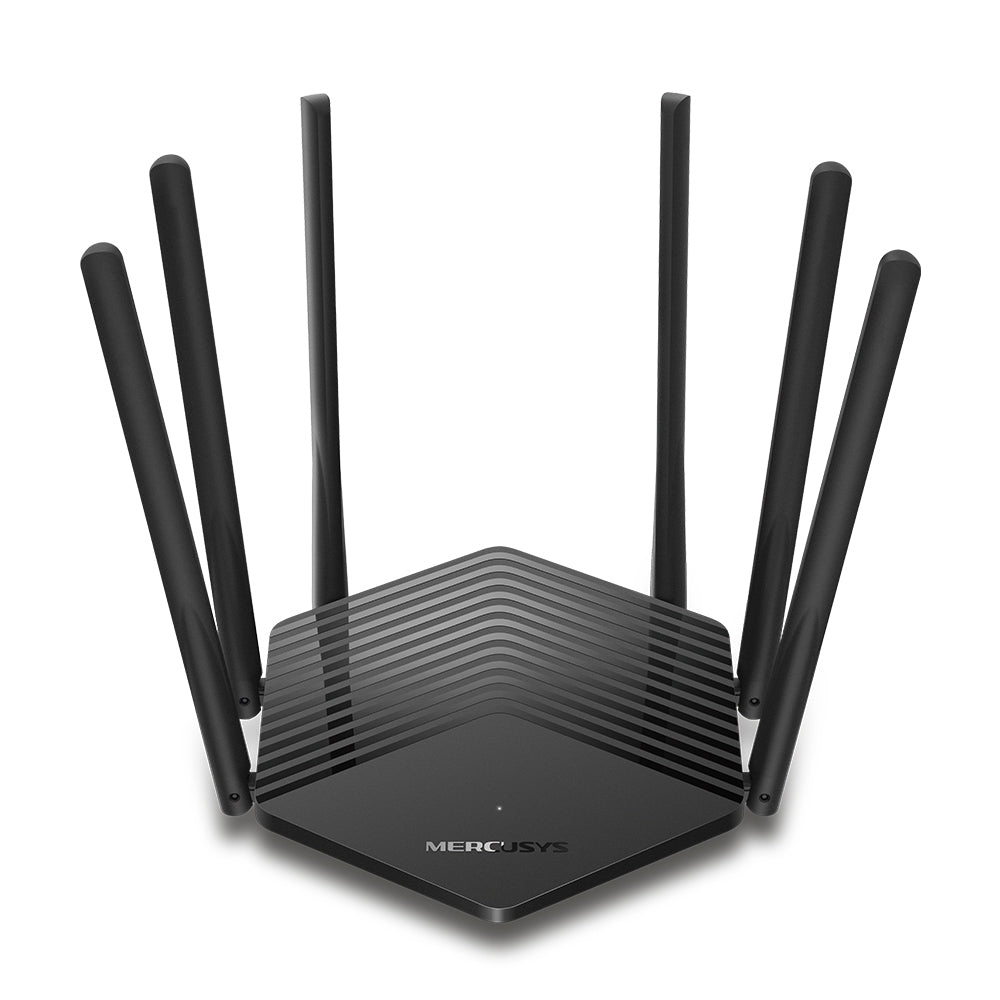

Mercusys MR50G AC1900 Wireless Dual Band Gigabit Router

Lightning Fast Speeds for All Devices

Concurrent WiFi Speeds Up to 1900 Mbps

As broadband services continue developing, your WiFi router also needs upgrading. The newest mainstream router is ready for you. Complying with the powerful 802.11ac standard, MR50G delivers speeds of up to 1900 Mbps (600 Mbps on 2.4 GHz, 1300 Mbps on 5 GHz) to make all your PCs, smartphones, and TV boxes run as fast as possible. Enjoy non-stop entertainment and smooth 4K streaming without any lag.

More Devices Connected Simultaneously

Increases Network Performance without Replacing Your PCs, Smartphones

A traditional router has to queue up your devices when there are multiple connections on a network at the same time, causing all-around network congestion. However, with MU-MIMO technology, MR50G communicates with multiple devices at the same time to reduce wait time and make your network more efficient.

Easily Manage Your Home Network

Super-Fast Wired Connections

Makes Full Use of Your Internet Access

Equipped with full gigabit ports which are 10× faster than Ethernet ports, MR50G transfers data at dizzying speeds for peak performance. Connect your PCs, IPTVs and game consoles to MR50G for robust stability.

Wireless

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11/b/g/n  2.4 GHz

Frequency

2.4 - 2.5GHz, 5.15 - 5.25GHz

WiFi Speeds

600 Mbps at 2.4 GHz, 1300 Mbps at 5 GHz

Reception Sensitivity

5GHz:
11a 6Mbps: -98dBm, 11a 54M: -78dBm
11ac VHT20_MCS0: -98dBm, 11ac VHT20_MCS8: -72dBm
11ac VHT40_MCS0: -92dBm, 11ac VHT40_MCS9: -68dBm
11ac VHT80_MCS0: -89dBm, 11ac VHT80_MCS9: -64dBm
2.4GHz:
11g 6Mbps: -97dBm, 11a 54M: -77dBm
11n VHT20_MCS0: -97dBm, 11n VHT20_MCS8: -72dBm
11n VHT40_MCS0: -92dBm, 11n VHT40_MCS9: -67dBm

Transmission Power

CE:<20dBm (2.4GHz), <23dBm (5.15 - 5.25GHz)
FCC:<30dBm(2.4 GHz & 5GHz)

Wireless Security

WEP
WPA / WPA2-Personal
WPA2 / WPA3-Personal

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Software

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management

Access Control
Local Management
Remote Management

DHCP

Server

Port Forwarding

Virtual Server, UPnP, DMZ

Firewall Security

IP and MAC Address Binding

Protocols

IPv4, IPv6

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

Hardware

Dimensions

175.6 x 157.2 x 45 mm

Interfaces

1× Gigabit WAN Port
2× Gigabit LAN Ports

Button

WPS/Reset Button

External Power Supply

12V/1A

Antenna Type

6 Fixed Omni-Directional Antennas

Others

Package Contents

• AC1900 Wireless Dual Band Gigabit Router
(MR50G)
• Power Adapter
• Ethernet Cable
• Quick Installation Guide
