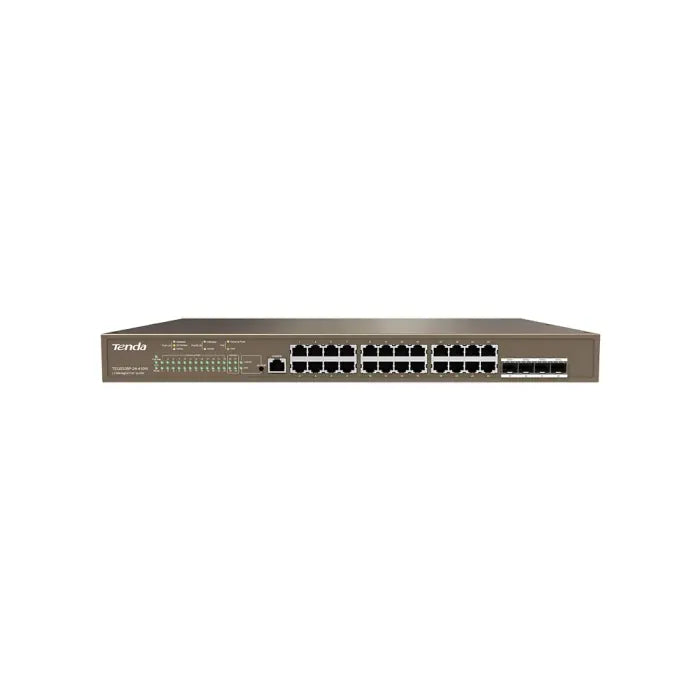

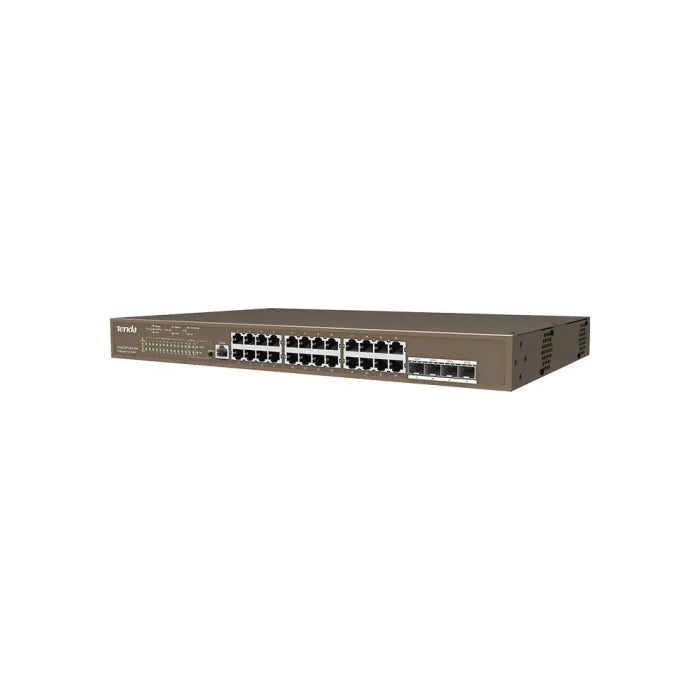

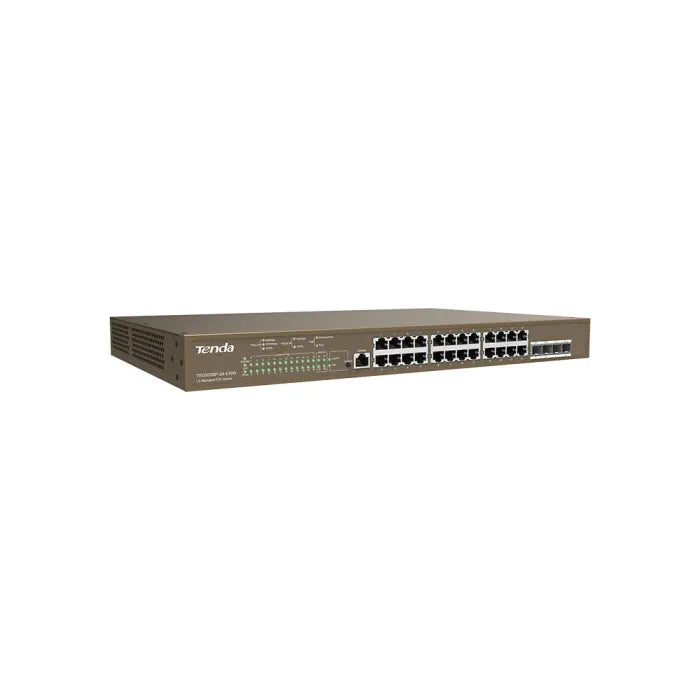

TENDA 24 PORT L3 Managed PoE Switch

IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s

1*Link/Act or PoE LED indicator

1*Link/1*Link/Act mode converting LED indicator

1*PoE mode converting LED indicator

1*PoE Max LED indicator

1*Power LED indicator

1*SYS LED indicator

24*10/100/1000 Base-T Ethernet ports

4*1000 Base-X SFP ports

1*Console port

Recommended: CAT5/5e UTP or better

2

Lightning protection for ports: 6kV

Lightning protection for power: 6kV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Store-and-forward

56Gbps

41.70Mpps

12Mb

16K

10K

Support

Single port: AF: 15.4W, AT: 30W

Whole device: 370W

100-240V AC 50/60Hz

Full load: ＜432W

Empty load: ＜23W

440.0mmx284.0mmx44.0mm

Desktop mounting: support

Wall mounting: support

Rack mounting:non-support

Support

Operating temperature: 0°C - 45℃

Storage temperature: -40°C - 70°C

Operating humidity: (10% - 90%) RH, non-condensing

Storage humidity: (5% - 90%) RH, non-condensing

FCC、CE、RoHS

Supports VLAN-based routing

Supports IPv4/IPv6 static routing

Supports static ARP

Supports port PoE configuration and power supply with priority

Supports PoE over-temperature protection

Supports PoE scheduled management

Supports intelligent management and PoE-powered device detection

(port status, power assignment and PoE-powered device status)

ARP receiving limit

Unknown MAC address discard

DoS attack defense

802.1x security authentication

Radius security authentication

IEEE 802.1Q VLAN

VLAN Layer-3 interfaces

Supports three port modes: Access, Trunk and Hybrid

DHCP Relay

DHCP Snooping

Supports Option 82 policy configuration

Static aggregation

LACP dynamic aggregation

IEEE 802.1d STP (Spanning Tree Protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)

Supports edge port

Supports BPDU statistics

IGMP Snooping V1/V2/V3

Supports port fast leave

Supports N: 1 port mirroring

SP (Strict Priority)

SWRR (Simple Weighted Round Robin)

WRR (Weighted Round Robin)

Supports 802.1p port trust mode

Supports DSCP port trust mode

Supports a maximum of 8-queue service quality mapping

Supports MAC ACL and IP ACL

Supports FTP/TFTP/HTTP upgrade

Supports configuration import and export

Supports Telnet, Console

Supports SNMP V1/V2/V3

Supports WEB management and maintenance

Supports Ping/IPv6/Tracert/Connection Detection

CPU Monitoring and memory monitoring
