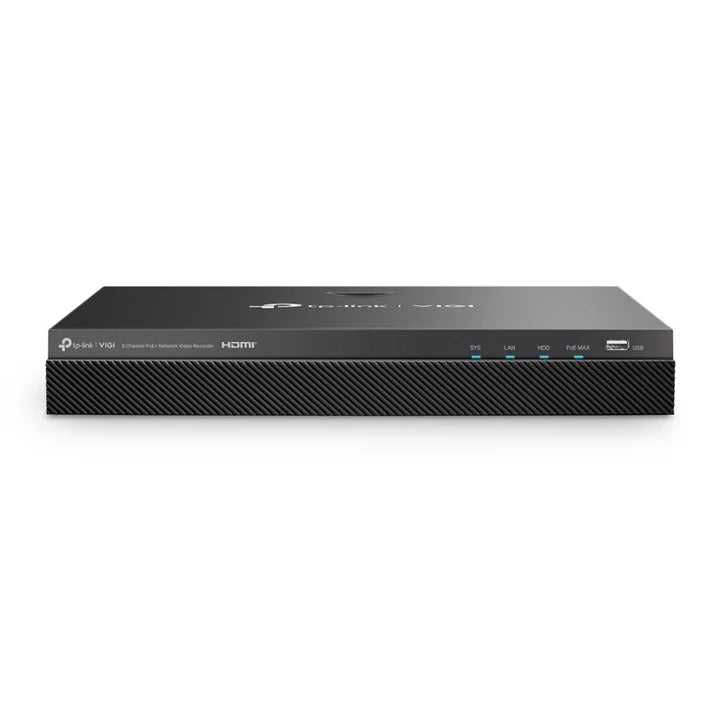

TP-Link VIGI 8 Channel PoE+ Network Video Recorder

TP-Link VIGI 8 Channel PoE+ Network Video Recorder

8-Channel Live View and 4K HDMI Video Output

8× 10/100 Mbps PoE+ Ports with 93 W PoE Budget

4-ch @ 4MP/ 8-ch @ 2MP Decoding Capability

8-Channel Synchronous Playback

80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth

2× SATA Interfaces and 1 Up to 10 TB (1× 2TB HDD Preinstalled)

H.265+ Compression Technology

HDMI and VGA Simultaneous Output

Remote Monitoring

Video and Audio

IP Video Input

8-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

Video Output Mode

HDMI/VGA Simultaneous Output

Multi-View Display

1/4/6/8

DECODING

Audio Compression

G.711A/G.711U/G.726

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

8-Channel†

Capability

25fps:

2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

30fps:

4-ch @ 3MP, 2-ch @ 5MP

Record Management

Record Mode

Manual Recording

Scheduling Recording

Motion Detection Recording

Playback Mode

Instant Playback

Regular Playback

Tag Playback

Event Playback

Backup Mode

Regular Backup

Video Clip Backup

Playback Function

Play

Pause

Stop

Fast Forward

Fast Backward

Play By Frame

Full Screen

Video Clip

Export Clip

Digital Zoom

Lock Recording

Audio On/Off

NETWORK

Protocol

UPnP (Plug and Play), NTP (Network Timing)

Mobile Phone Access

Android, iOS

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

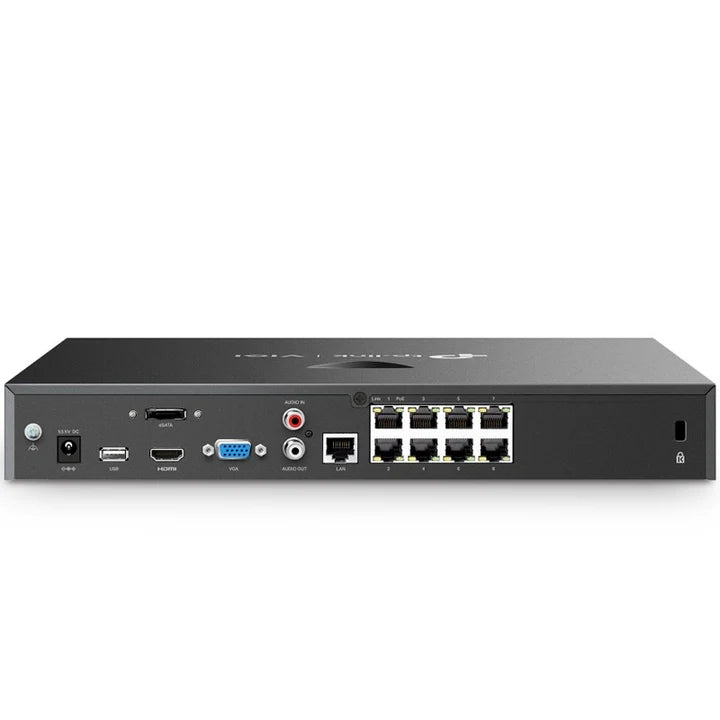

External Interface

Network Interface

1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

1 Front USB 2.0 Port, 1 Rear USB 2.0 Port

Audio Interface

1, Audio In; 1, Audio Out

Alarm In/Out

N/A

Serial Interface

N/A

Power

1× DC Jack

Reset Button

1

Speaker

N/A

eSATA

1

HDMI

1

VGA

1

HARD DISK

SATA

2 SATA Interfaces

Capacity

Up to 10 TB Capacity for Each HDD

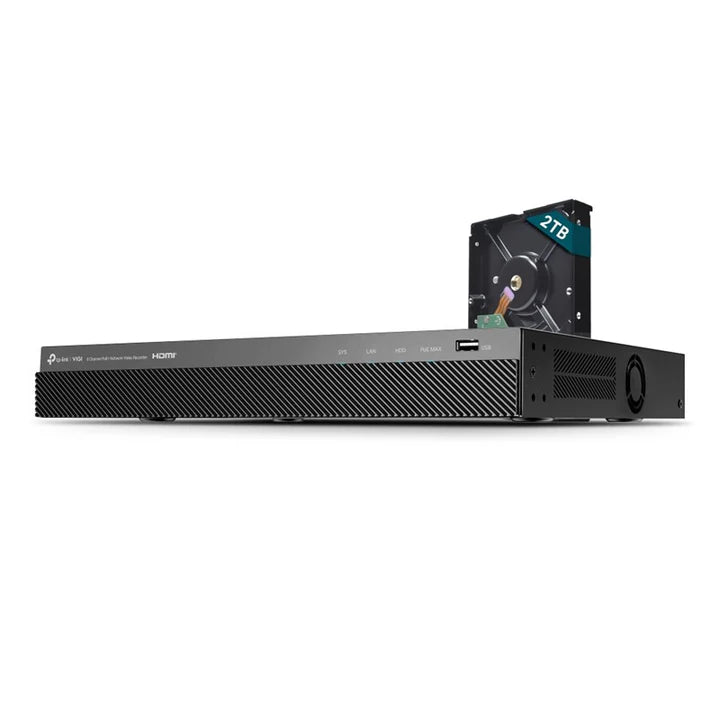

1 × 2TB HDD Preinstalled

PoE

Standard

802.3at/af Compliant

Interface

1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

PoE Budget

93 W△ Available for All PoE+ Ports, 30 W Max per Port

Alarm

General Alarm

Motion Detection

Video Tampering

Line-Crossing Detection

Intrusion Detection

Region Entering Detection

Region Exiting Detection

Object Abandoned/Removal Detection

Vehicle Detection

Human Detection

Smart Frame

Anomaly Alarm

Video Loss

Offline and IP Conflict

Disk Exception

Login Exception

Fan Exception

Alarm Linkage

Recording

White Light Alarm

Buzzer

Log

Audible Alarm

GENERAL

Storage Temperature

-40–70 °C

Storage Humidity

10%~90% RH Non-Condensing

Package Content

VIGI Network Video Recorder

Power Adapter

Power Cables

HDD Power Cables

HDD Data Cables

Mounting Accessories

Mouse

Quick Installation Guide

Working Temperature

NVR: -10–55 °C

Power Adapter: 0–40 °C

Working Humidity

10%~90% RH Non-Condensing

Net Weight

2.1 kg

Gross Weight

4.1 kg

Power Supply

53.5V DC/2.43A

Certifications

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDM
