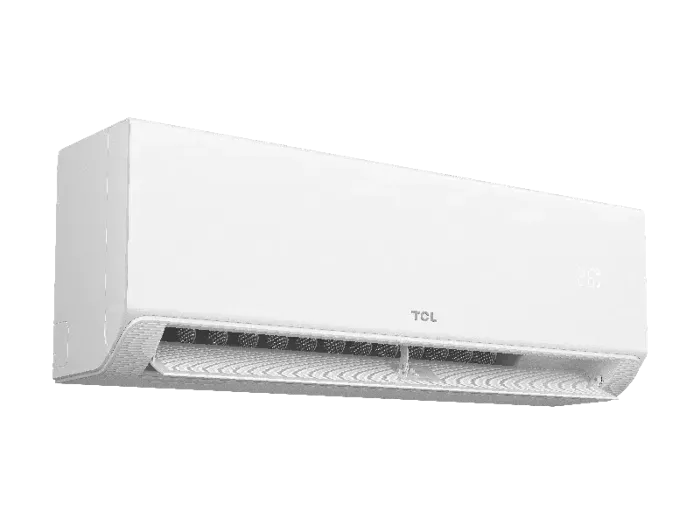

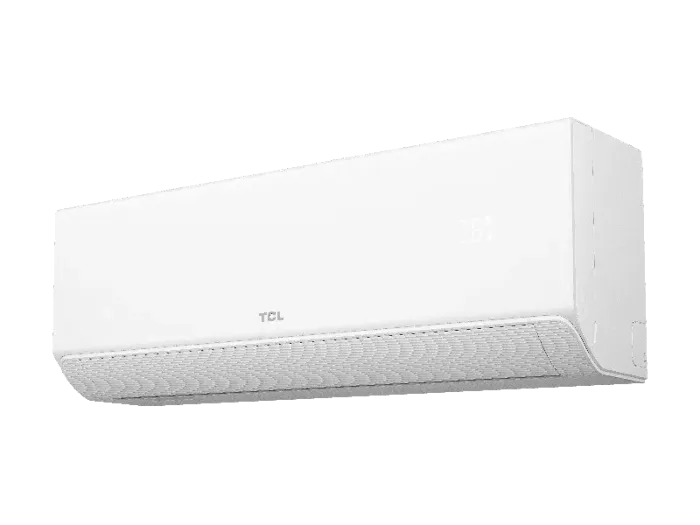

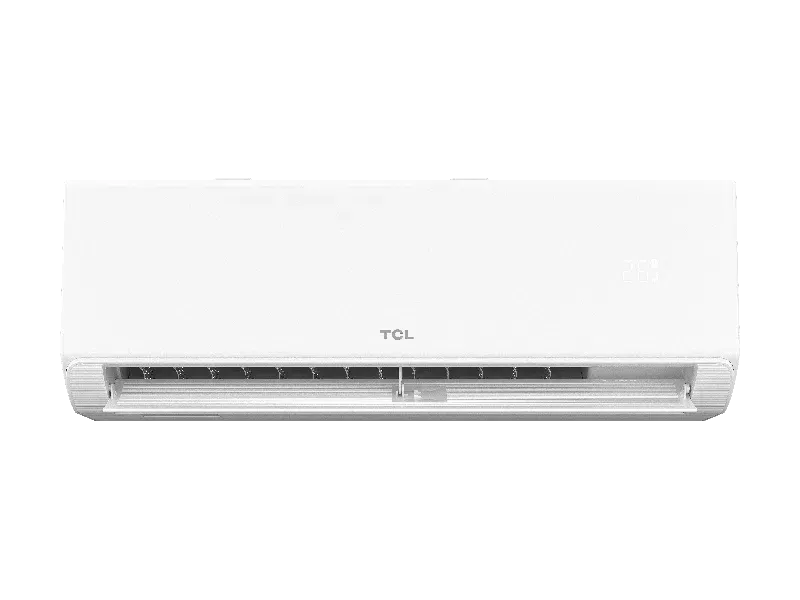

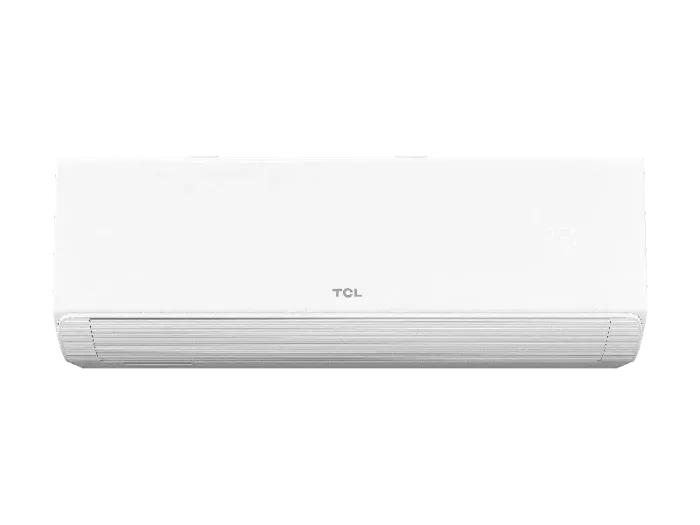

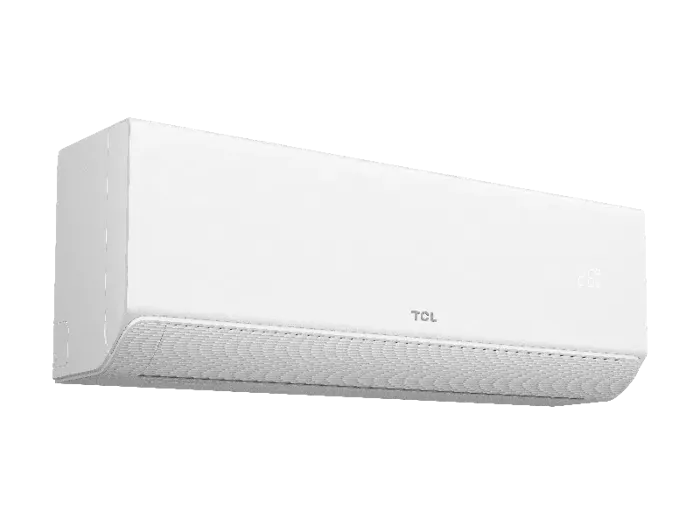

TCL BreezeIN Split Air Conditioner 1.5 Ton, 18000 BTU, White – TAC-18CSA-TPH21

DESCRIPTION

Discover the TCL BreezeIN On/Off air conditioner featuring gentle, draft-free airflow and smart control options. With energy-saving inverter technology and automatic self-clean and filter reminders, it ensures efficient, convenient climate management for any space.

4 Steps Auto Clean

From dewing, frosting, sterilizing to drying. Deep Clean utilizes water molecules in the air to clean away dust, dirt, and other impurities. The auto program is efficient, easy, and a superior way to enjoy cleaner air – just click the button.

Compatible with Google Home & Alexa

Upgrade your home to a truly smart ecosystem with our smart BreezeIN AC. Connect it to your smart TV, smartphone, or Alexa soundbar through TCL HOME or Google Assistant for hands-free voice control & convenient remote control. Take charge of your comfort with effortless convenience and complete control at your fingertips.

Easy Assembly

Less Parts, Less Screws, makes it friendly to assemblers. Full Buckle Design with No Screw. 20”= Disassembly + Assembly, Assembly Efficiency Increased by 9.4%

Easy Disassembly and Cleaning

Cleaning and disassembling an air conditioner is not as complicated as imagined, and it can be completed in three steps.

Quick Replacement of PCB

Quick Replacement Of PCB With Only 3 Steps: Open front panel. Take off PCB box cover. Take out PCB for replacement.

Comfortable Cooling

Cooling under extreme condition. Keep you cool in scorching summer. Stay cool no matter the temperature. Air-cooled E-box ensures continuous cooling even at 60°C ambient.

Comfortable Heating

Heating under extreme condition. Keep you warm in frozen winter. The TCL compressor is designed to operate efficiently in cold weather. It maintains its heating functionality even when the outside temperature drops to -20°C. Your room temperature remains comfortable even in harsh winter conditions.

Fast Cooling & Heating

Turbo Cooling & Heating. Experience fast cooling with coils down to 18°C within 30s and have warm atmosphere with coils up to 40°C within 60s, the inverter compressor runs at extremely high frequency to output max, capacity and the cooling/warm airflow will blow out as set when you get back home from scorching/freezing outside.

Wired Controller

The air conditioning hotel mode is a convenient feature that allows you to control the air conditioner using a wired remote controller. It is especially useful in hotel rooms where guests can easily adjust the temperature and settings according to their preferences.

BMS Function

BMS (Building Management System) This feature allows you to integrate and control up to 30 air conditioning units through a single computer. BMS stands for Building Management System, which is a computer-based control system used to monitor and manage various building functions.

Smart Filter Blockage Reminder

Our air conditioner keeps you informed on filter cleanliness. When the filter is full, the AC displays “CL” and sends a reminder through TCL Home app.

Self-diagnosis and Refrigerant Leakage Reminder

Enjoy peace of mind with our AC’s built-in self-check feature! It proactively identifies potential issues, including refrigerant leaks, and notifies you with a code displayed on the control panel. Furthermore, receive real-time notifications directly to your phone. Rest assured knowing that our AC system guarantees safe operation.

✅ Specifications:

• Model: TAC‑18CSA‑TPH21

• Type: Split wall-mounted air conditioner (BreezeIN series – On/Off type)

• Cooling Capacity (T1 Standard): 18,300 BTU/h (≈ 5,363 Watts)

• Cooling Capacity (T3 Hot Climate): 16,400 BTU/h (≈ 4,807 Watts)

• Rated Cooling Power Input: 1,511 Watts

• Rated Current: 6.5 Amps

• Energy Efficiency Ratio (EER): 12.11 BTU/h·W

• Maximum Power Input: 2,300 Watts

• Maximum Current: 12.5 Amps

• Dehumidification Rate: 1.8 Liters per hour

• Airflow (High Speed): 1,200 m³/h

• Operating Temperature Range: 15°C to 52°C

• Refrigerant Type: R410A

• Compressor Type: Rotary (Inverter compatible)

• Indoor Noise Level: 48 dB

• Outdoor Noise Level: Up to 56 dB

• Air Distribution: Gentle Breeze Technology with S-shaped micro-hole vanes for soft, shower-like airflow

• Self-Cleaning: 4-step automatic self-cleaning function

• Air Filters: Multi-layer filtration including anti-bacterial, high-density filter with silver ion, activated carbon, photocatalyst, catechin, and vitamin C

• Smart Control Features:

  • Wi-Fi control via TCL Home app

  • Voice control with Google Assistant and Alexa

  • "I-Feel" temperature sensor

  • Filter clog reminder

  • Auto-restart after power failure

  • Generator mode support

• Operation Modes: Eco, Turbo, Sleep, Hotel, Heavy Cool

• Display: Hidden LED temperature display

• Timer: 24-hour on/off programmable timer

• Voltage & Frequency: 220–240V / 50Hz (operates within 198–264V)

• Indoor Unit Dimensions: 1,097 × 222 × 332 mm

• Outdoor Unit Dimensions: 920 × 380 × 699 mm

• Indoor Unit Weight: Approx. 15 kg

• Package Weight: Approx. 18 kg

• Country of Origin: China

• Warranty: 5 years on compressor and unit (region-dependent)
